LOW NOISE AIR PUMP

NO.AP-30

Energy-saving motor, Temperature-rise slow, Power-consumption small.

Special rubber, High pressure, Steady function.

High-quality aluminum-alloy housing, Compact structure, Lower noise.

Exchanging air inlet and outlet, Dual purpose of positive and negative pressure.

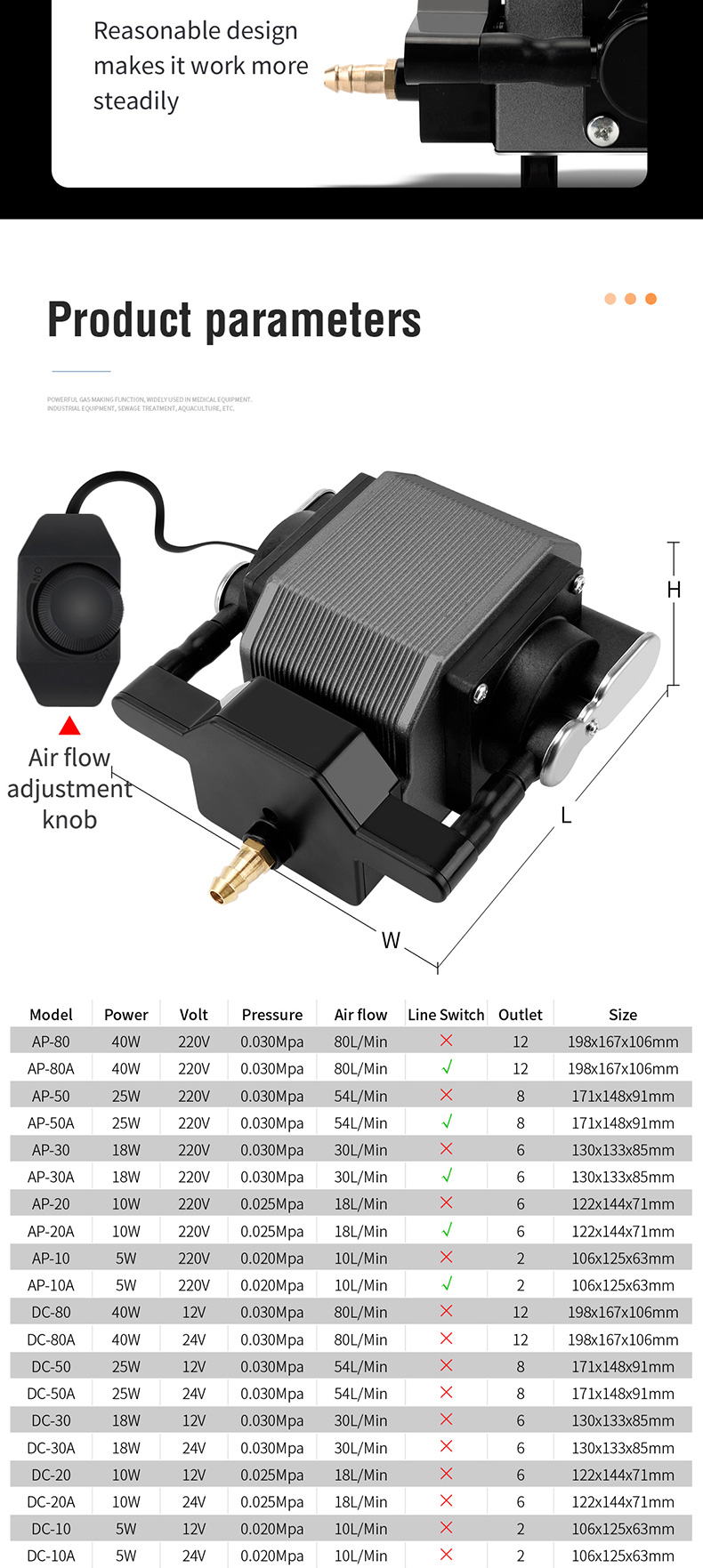

PRODUCTS DETAIL

型号
Model		电压
Voltage		频率
Frequency		最大功率
Max power		最大压力
Max pressure		最大气流量
Max Air Flow		噪音
Noise		出口直径
Outlet Diameter
AP-30220V~240V/110V~120V50Hz/60Hz18 W30 KPa30 L/min42 dBA/1mΦ8 mm
　
型号
Model		使用压力范围
Use Pressure Range		线控
Line switch		额定功率
Rated Power		额定压力
Rated Pressure		额定气流量
   Rated Air Flow		重量
Weight		产品尺寸
Dimension
AP-305~15 KPaNO16 W10 KPa20 L/min1.65 kg143x142x80 mm
