LOW NOISE AIR PUMP

NO.AP-30A

Energy-saving motor, Temperature-rise slow, Power-consumption small.

Special rubber, High pressure, Steady function.

High-quality aluminum-alloy housing, Compact structure, Lower noise.

Exchanging air inlet and outlet, Dual purpose of positive and negative pressure.

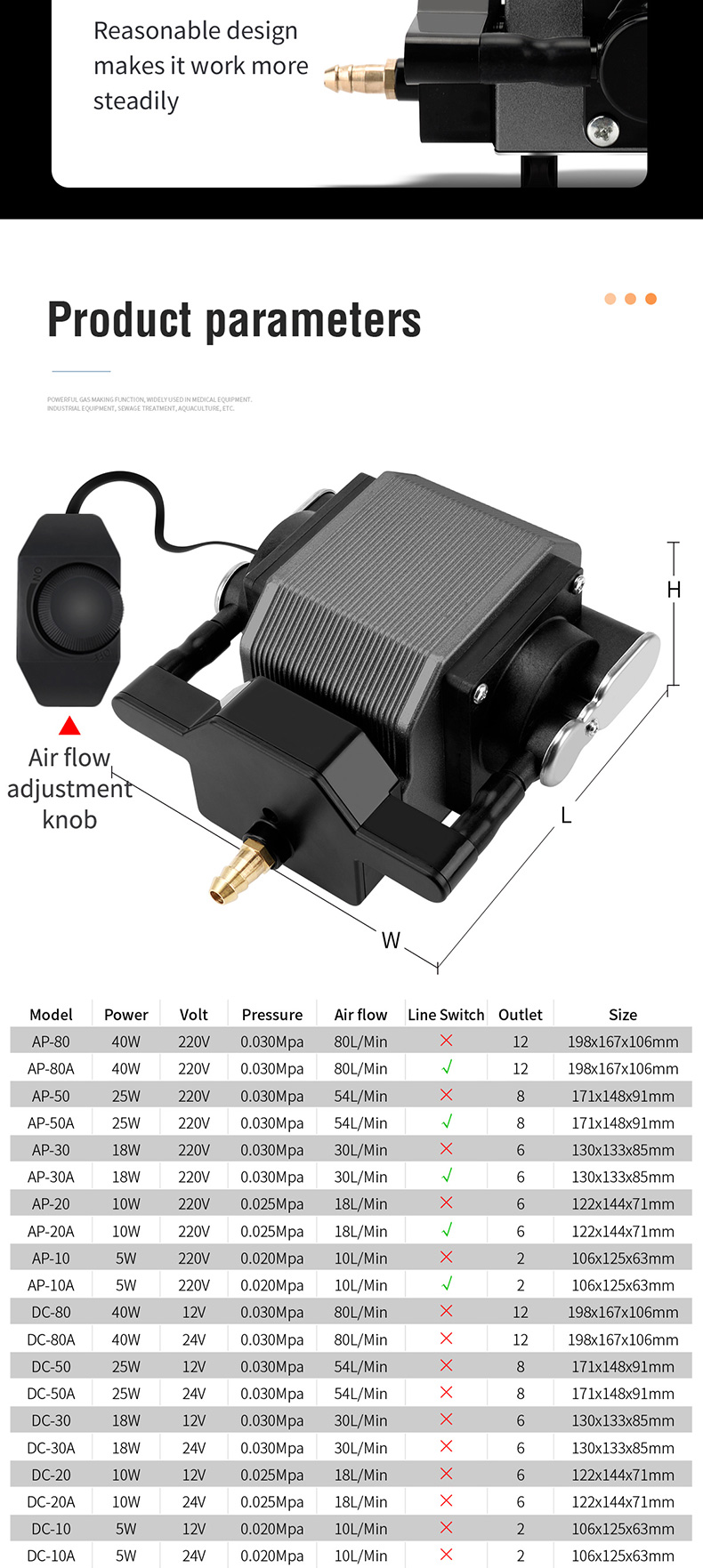

PRODUCTS DETAIL

型号
Model 		电压
 Voltage 		频率
Frequency 		最大功率
Max power 		最大压力
Max pressure 		最大气流量
Max Air Flow 		噪音
Noise 		出口直径
Outlet Diameter
AP-30A 220V~240V/110V~120V 50Hz/60Hz 18 W 30 KPa 30 L/min 42 dBA/1m Φ8 mm
　
型号
Model 		使用压力范围
Use Pressure Range 		线控
Line switch 		额定功率
Rated Power 		额定压力
Rated Pressure 		额定气流量
Rated Air Flow 		重量
Weight 		产品尺寸
Dimension
AP-30A 5~15 KPa Yes 16 W 10 KPa 20 L/min 1.65 kg 143x142x80 mm
