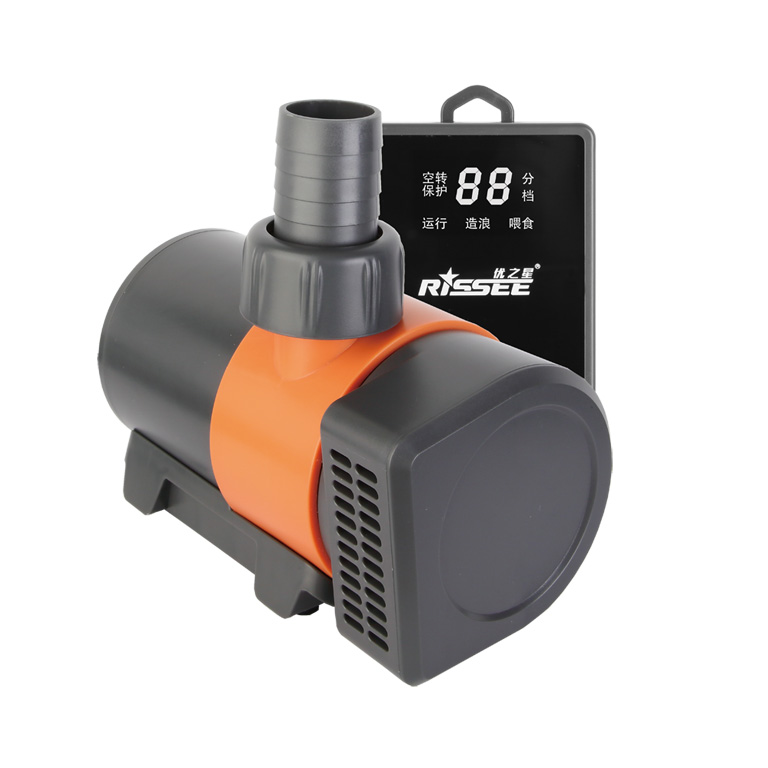

Sine-wave variable frequency pump

NO.BSP-10000

SUITABLE RANGE

1. This pump is suitable for pond landscape,fountain and aquarium tank.

2. Can be used in temporary seafood pond and the aquarium's circulating water supply.


FEATURES

1. The pump have 3 modes:10 levels adjustable mode,feed mode and wave mode.The max power up to 160w and the max flow rate up to 160ooL/Hr.It can be adjusted to match different size of tank.

2. Brushless frequency conversion control technology, using the most advanced sensorless three-phase intelligent drive,adjust PwM to change pump speed and power,soft start,safe and reliable,long service life.

3.Ceramic shaft core, ceramic shaft sleeve, ensure the long service life of the pump.

4. Safe and reliable,high efficiency,small machine.

5. The input voltage of controller is AC220-240V 50/60Hz.

6.Can be used in fresh and sea water.


PRODUCTS DETAIL

Model

Volt.

Freq.

Power

Hmax

Qmax

Outlet diameter

Dimensions
BSP-10000220~240V50/60Hz 90W6.5m10000 L/Hr Φ 22/25/32/40mm187x99x128mm
