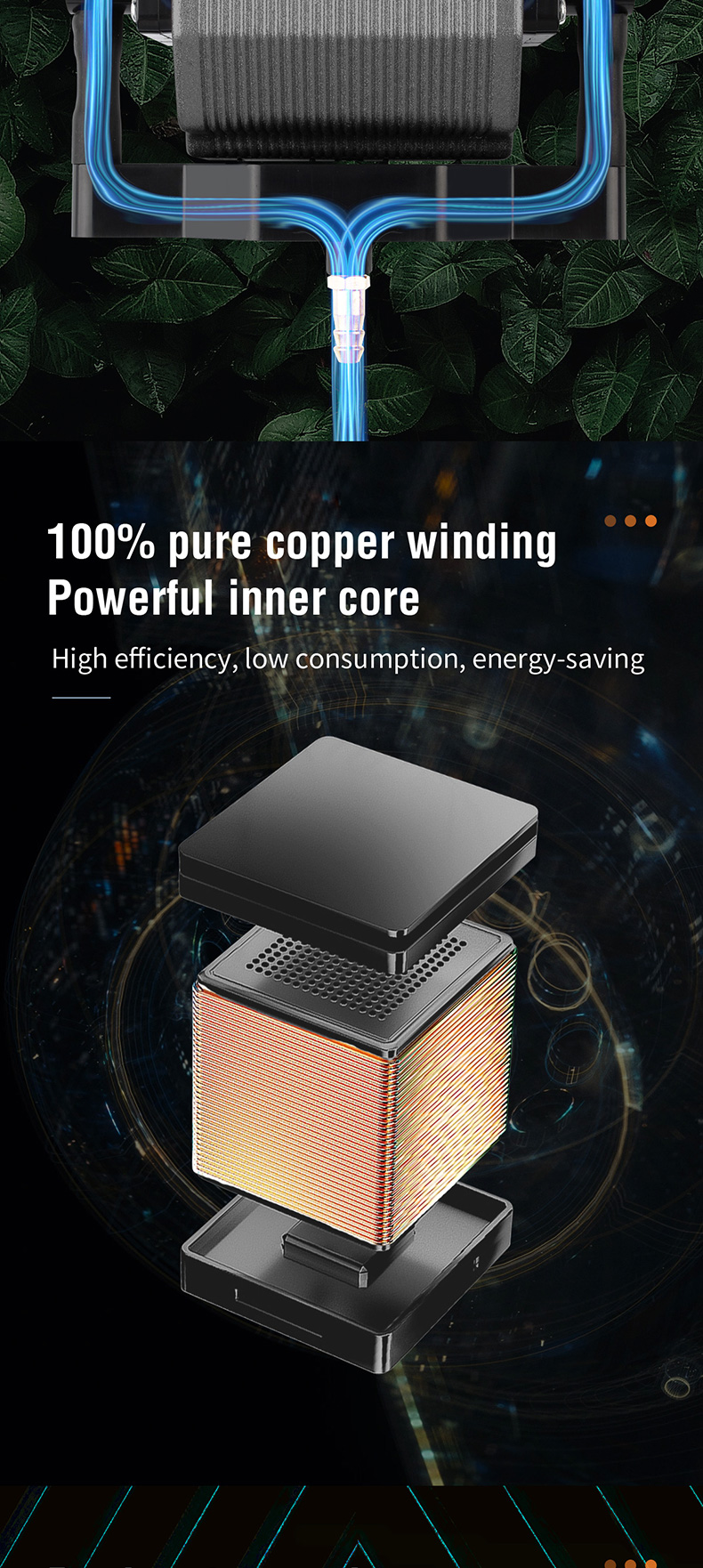

Energy-saving motor, Temperature-rise slow, Power-consumption small.
Special rubber, High pressure, Steady function.

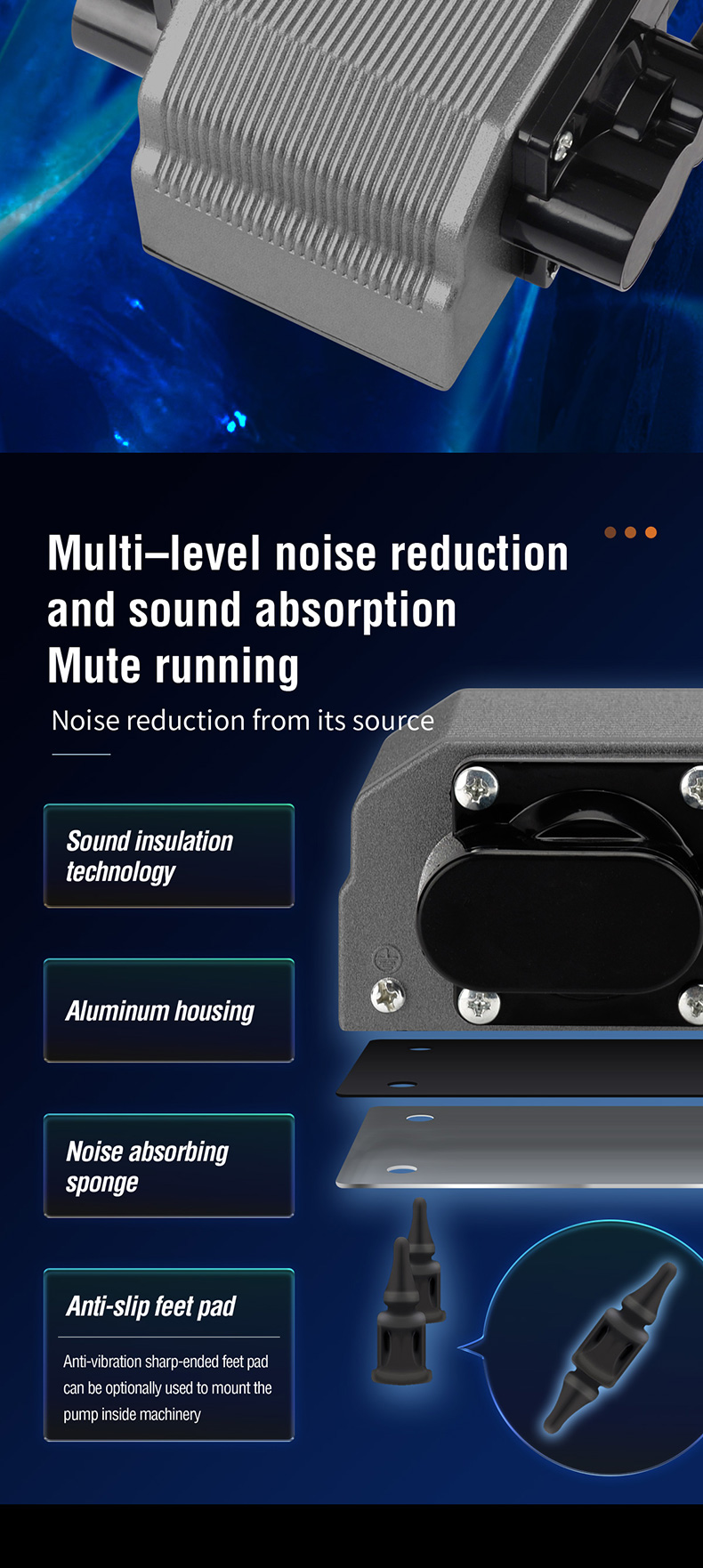

High-quality aluminum-alloy housing, Compact structure, Lower noise.
Exchanging air inlet and outlet, Dual purpose of positive and negative pressure.

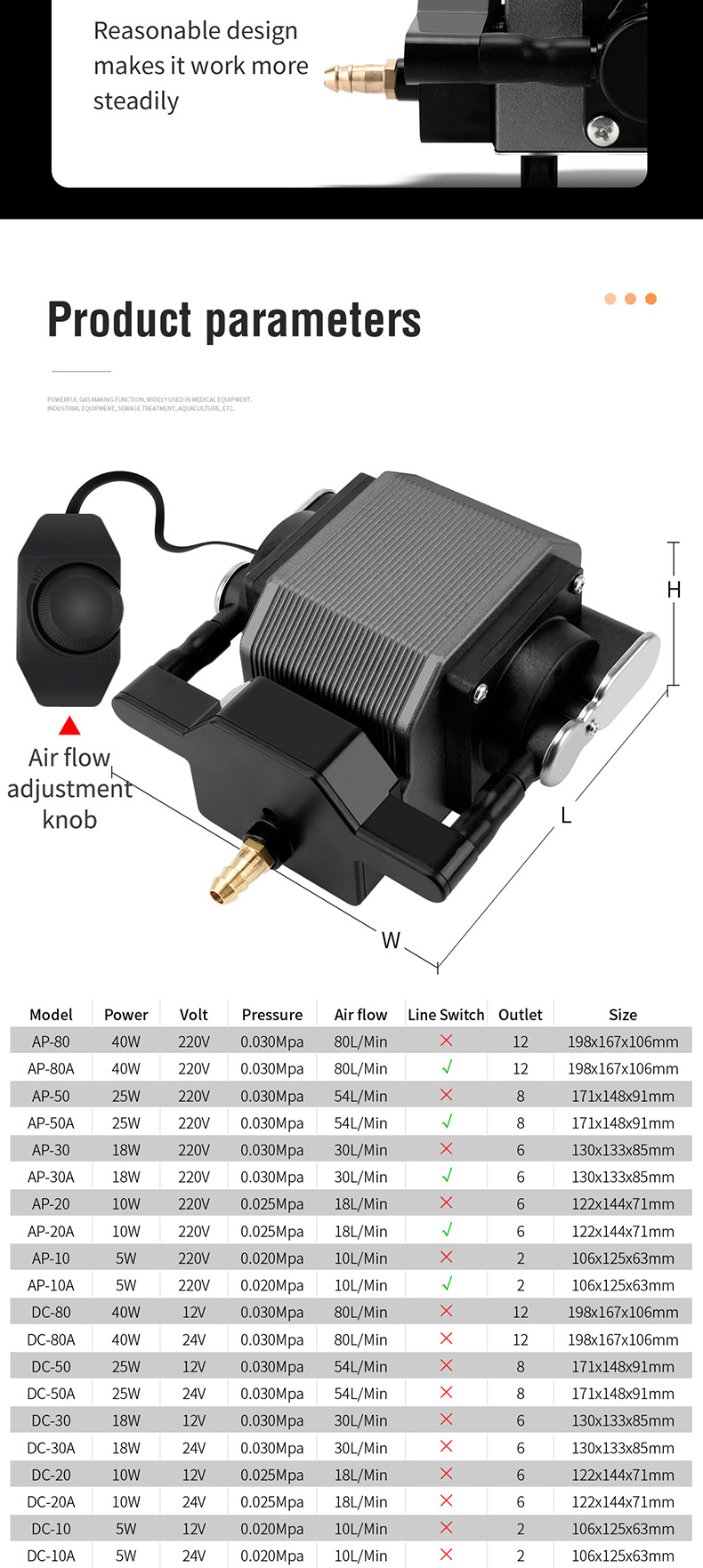

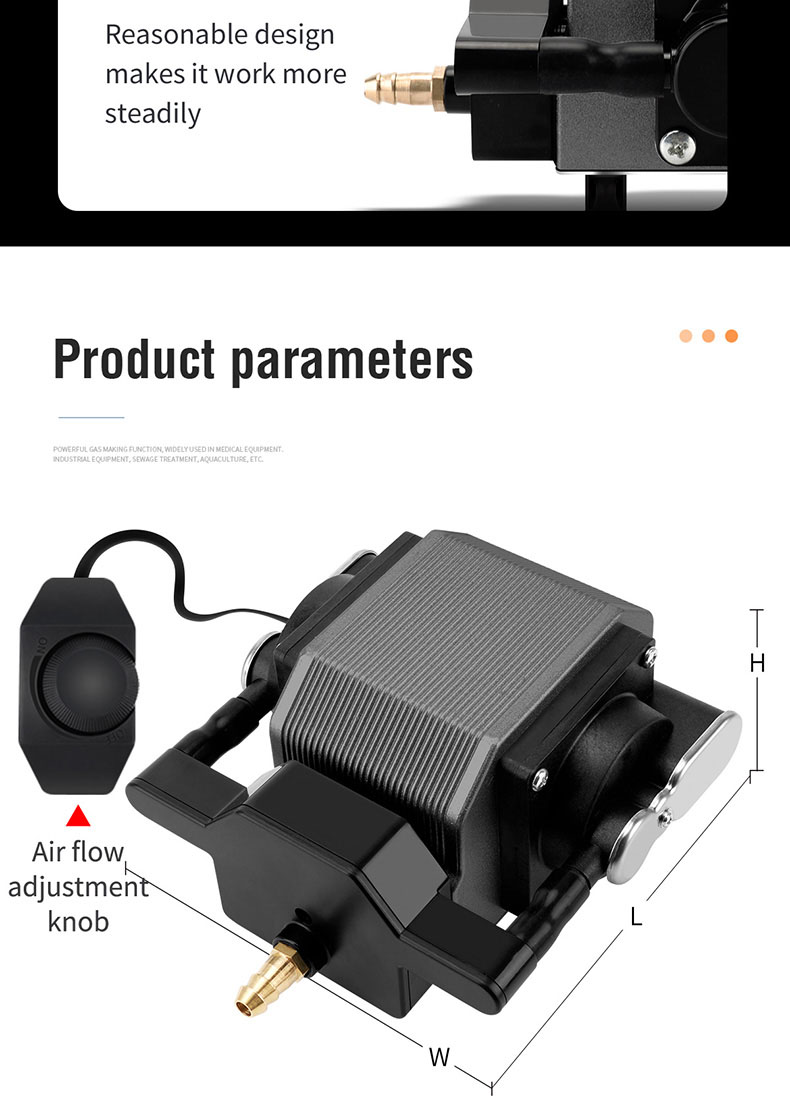

| 型号 Model | 电压 Voltage | 频率 Frequency | 最大功率 Max power | 最大压力 Max pressure | 最大气流量 Max Air Flow | 噪音 Noise | 出口直径 Outlet Diameter |
| AP-20 | 220V~240V/110V~120V | 50Hz/60Hz | 10 W | 25 KPa | 18 L/min | 33 dBA/1m | Φ8 mm |
| 型号 Model | 使用压力范围 Use Pressure Range | 线控 Line switch | 额定功率 Rated Power | 额定压力 Rated Pressure | 额定气流量 Rated Air Flow | 重量 Weight | 产品尺寸 Dimension |
| AP-20 | 3~10 KPa | NO | 9.5 W | 5 KPa | 16 L/min | 1.02 kg | 123x122x71 mm |
